LCC300-00W-X
CONN TERM RECT TONG 300 MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

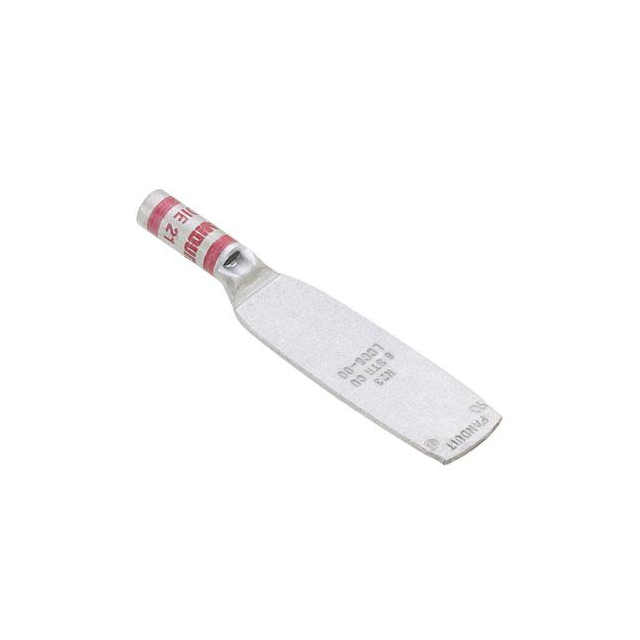

Panduit Corp Pan-Lug™ LCC300-00W-X is a non-insulated, rectangular tongue terminal connector designed for 300 MCM (kcmil) wire. This component features a crimp barrel termination and a mounting type of free hanging (in-line). Key dimensions include an overall length of 5.720 inches (145.29mm) and an outer edge width of 1.190 inches (30.23mm), with a tab thickness of 0.160 inches (4.06mm). The terminal style is a no stud hole configuration. This product is supplied in bulk packaging. Applications for this terminal connector are commonly found in the power distribution and electrical infrastructure industries.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 5.720"" (145.29mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | No Stud Hole |
