LCC3/0-14B-X
CONN TERM RECT TONG 3/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

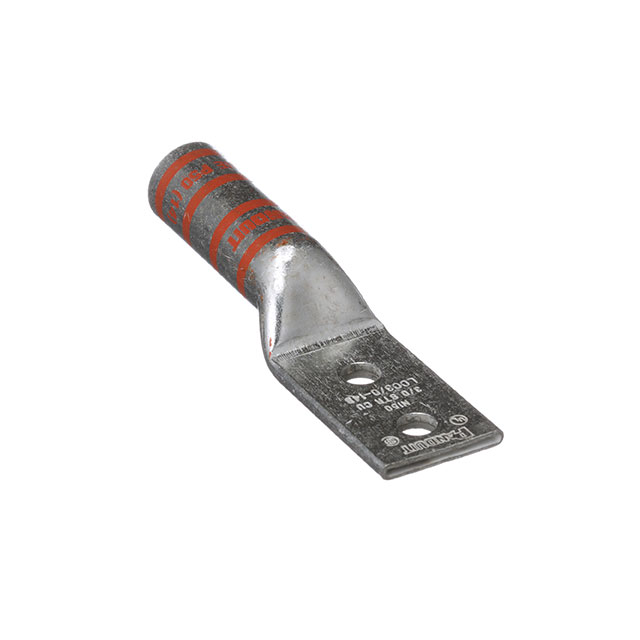

Panduit Corp Pan-Lug™ LCC3-0-14B-X is a non-insulated, rectangular tongue terminal connector designed for 3/0 AWG wire. This component features a 1/4 stud size and two stud holes for secure mounting. The overall length is 3.560 inches (90.42mm) with an outer edge width of 0.960 inches (24.38mm) and a tab thickness of 0.130 inches (3.30mm). Termination is achieved via crimp to the barrel. This terminal is suitable for applications in power distribution, industrial automation, and electrical infrastructure where reliable and robust connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.560"" (90.42mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
