LCC3/0-12D-X
CONN TERM RECT TONG 3/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

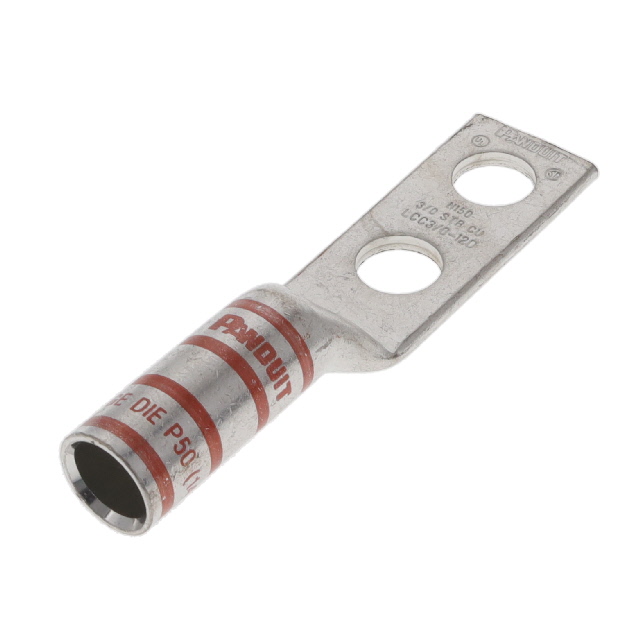

Panduit Corp Pan-Lug™ LCC3-0-12D-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a two-stud hole configuration, accommodating a 1/2 stud size with a tab thickness of 0.130 inches. It is engineered for crimp termination with a barrel design, suitable for wire gauges up to 3/0 AWG. The overall length of the connector is 4.120 inches, with an outer edge width of 0.960 inches. This terminal is provided in bulk packaging. Its durable construction makes it suitable for applications in power distribution, industrial automation, and renewable energy systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.120"" (104.65mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
