LCC3/0-00-X
CONN TERM RECT TONG 3/0 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

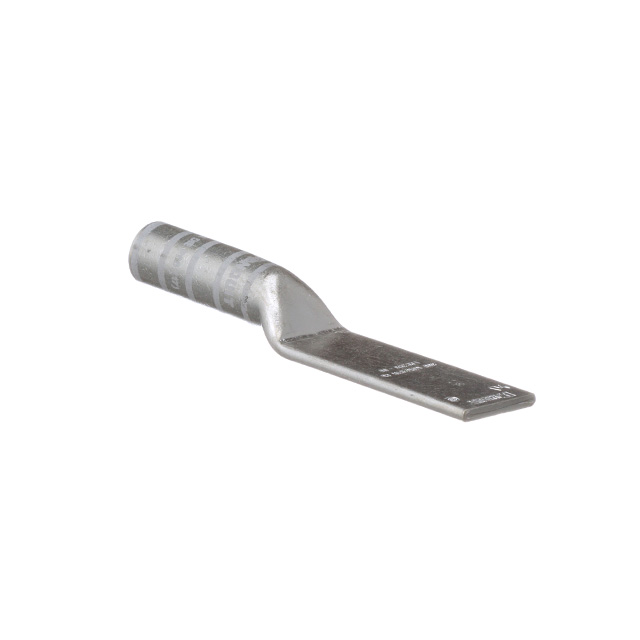

Panduit Corp Pan-Lug™ LCC3-0-00-X is a non-insulated, rectangular tongue terminal connector designed for 3/0 AWG wire. This component features a barrel termination with a crimp connection method. The overall length measures 5.030 inches (127.76mm), and the width is 0.960 inches (24.38mm). The tab thickness is 0.130 inches (3.30mm). This terminal connector is suitable for free hanging (in-line) mounting. It is commonly utilized in power distribution and high-current applications across various industrial sectors. The LCC3-0-00-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 5.030"" (127.76mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | No Stud Hole |
