LCC250-56DWF-X
CONN TERM RECT TONG 250MCM #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

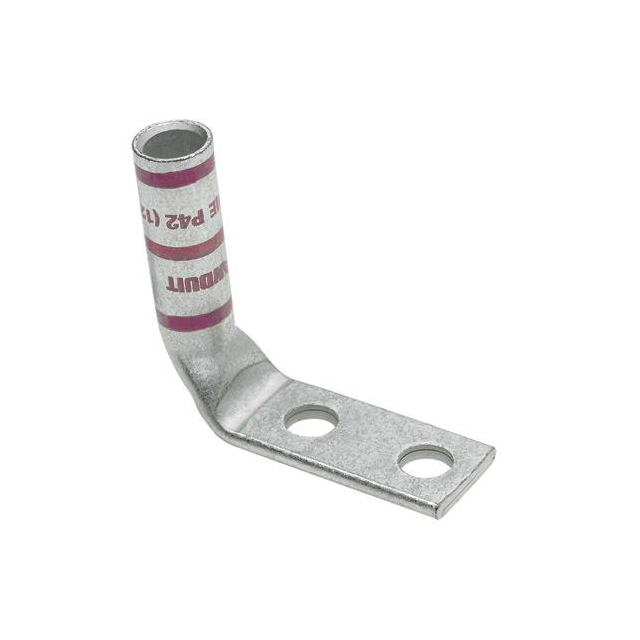

Panduit Corp Pan-Lug™ LCC250-56DWF-X is a non-insulated, rectangular tongue terminal connector designed for terminating 250MCM (kcmil) wire. This component features a 5/16 stud size and a tab thickness of 0.140" (3.56mm), with an outer width of 1.170" (29.72mm). The terminal style supports two stud holes, facilitating secure connections. Termination is achieved via crimp, utilizing a barrel design. The LCC250-56DWF-X offers both Free Hanging (In-Line) and Right Angle mounting types, providing flexibility in application placement. This terminal is commonly specified in power distribution, industrial automation, and heavy equipment manufacturing. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
