LCC250-38DWF-X
CONN TERM RECT TONG 250 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

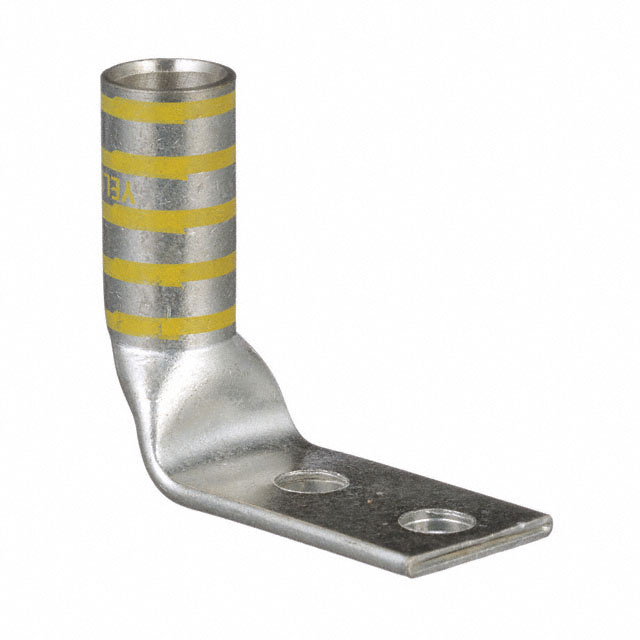

Panduit Corp Pan-Lug™ LCC250-38DWF-X is a non-insulated, rectangular tongue terminal connector designed for 250 MCM (kcmil) wire gauge. This component features a 3/8 stud size and a tab thickness of 0.140 inches (3.56mm). The terminal style includes two stud holes, facilitating robust connections. Termination is achieved through crimping onto the barrel. With an outer width of 1.170 inches (29.72mm), this component is suitable for free hanging (in-line) and right-angle mounting configurations. Its construction makes it a reliable choice for demanding electrical applications across various industrial sectors. This product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
