LCC250-12H-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

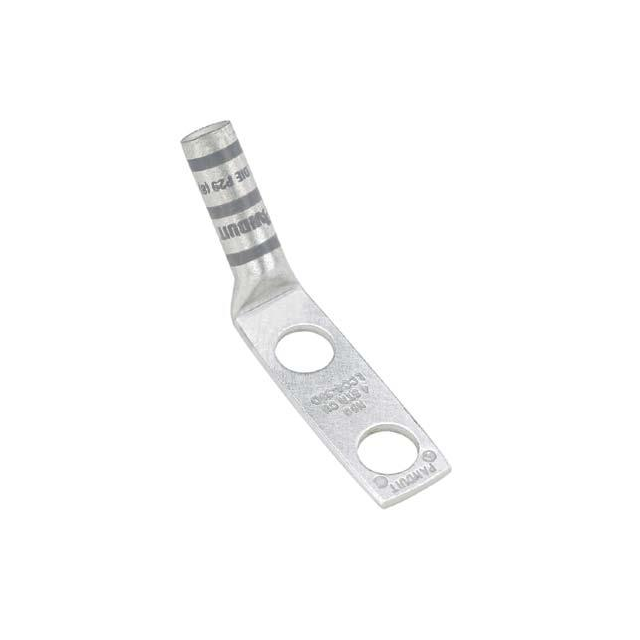

Panduit Corp Pan-Lug™ LCC250-12H-X offers robust electrical termination for high-power applications. This non-insulated, rectangular tongue terminal features a 250 MCM wire gauge capacity and is designed for a 1/2 stud size. The crimp barrel termination ensures secure wire connection, while the dual stud holes provide enhanced mounting flexibility, supporting both free hanging (in-line) and 45° angle configurations. With an overall width of 1.170 inches (29.72mm) and a tab thickness of 0.140 inches (3.56mm), this component is engineered for reliable performance in demanding industrial environments. Commonly utilized in power distribution, heavy machinery, and renewable energy sectors, the LCC250-12H-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
