LCC250-12DWH-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

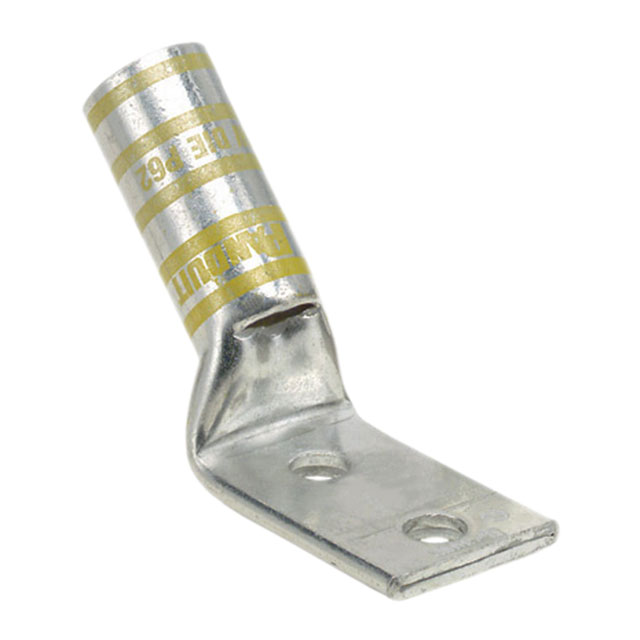

Panduit Corp LCC250-12DWH-X from the Pan-Lug™ series is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This crimp-style lug accommodates wire gauges up to 250 MCM (kcmil) and features a dual stud configuration for 1/2" stud mounting. The terminal, with a tab thickness of 0.140" (3.56mm) and an outer edge width of 1.170" (29.72mm), is suitable for heavy-duty applications. Its mounting type allows for free hanging in-line or at a 45° angle. This component is commonly utilized in power distribution, industrial automation, and renewable energy sectors where reliable high-current termination is critical. The LCC250-12DWH-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
