LCC250-12DWF-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

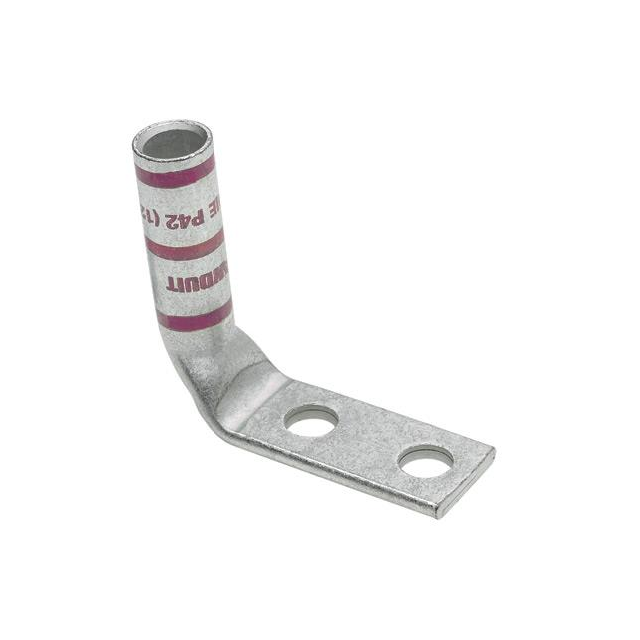

Panduit Corp Pan-Lug™ LCC250-12DWF-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a two-stud hole configuration with a 1/2 inch stud size and a tab thickness of 0.140 inches. It is engineered for a 250MCM (kcmil) wire gauge, utilizing a crimp barrel termination method. The outer edge width measures 1.170 inches. This terminal is suitable for applications requiring reliable power distribution and is commonly found in industrial power systems, heavy equipment, and renewable energy installations. Manufactured by Panduit Corp, this Pan-Lug™ component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
