LCC250-12DW-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

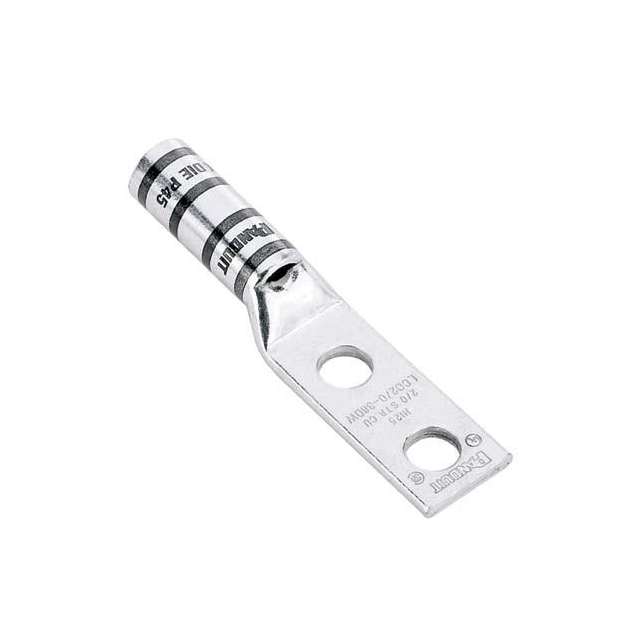

Panduit Corp LCC250-12DW-X is a non-insulated rectangular tongue terminal from the Pan-Lug™ series. Designed for crimp termination, this connector features a 250 MCM (kcmil) wire gauge capacity and a 1/2 stud size. The overall length is 4.120 inches (104.65mm) with an outer width of 1.170 inches (29.72mm) and a tab thickness of 0.140 inches (3.56mm). This terminal is suitable for free hanging (in-line) mounting. Its construction supports reliable connections in power distribution, industrial automation, and renewable energy applications. The LCC250-12DW-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.120"" (104.65mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
