LCC250-12DH-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

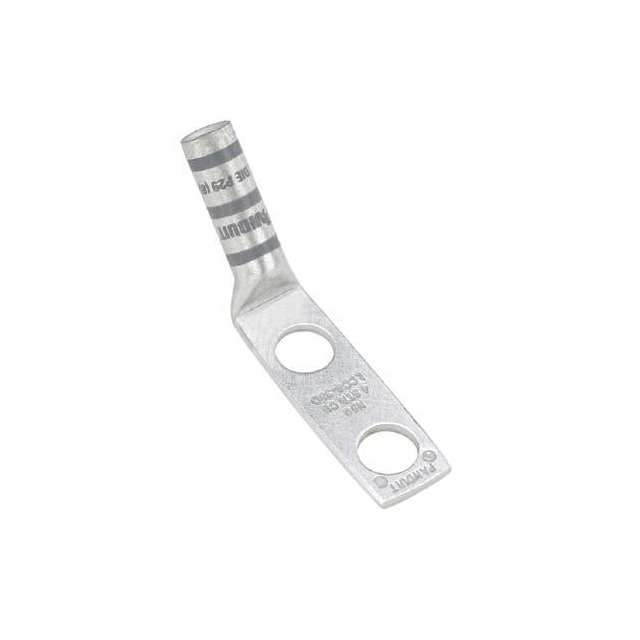

Panduit Corp's Pan-Lug™ LCC250-12DH-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. Featuring two stud holes with a 1/2 stud size and a tab thickness of 0.140 inches (3.56mm), this component is engineered for crimp termination onto 250MCM (kcmil) wire. The terminal offers a 1.170-inch (29.72mm) outer width, providing ample surface area for secure connections. Its mounting type is free hanging (in-line) or can be positioned at a 45° angle, offering flexibility in installation. This terminal connector is commonly utilized in high-power industrial applications, power distribution, and heavy equipment manufacturing where reliable and durable electrical terminations are critical. The LCC250-12DH-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
