LCC250-12DF-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

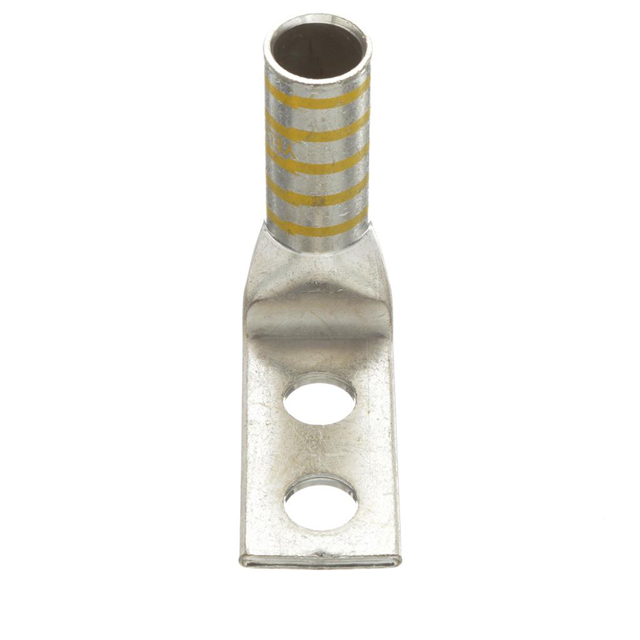

Panduit Corp's Pan-Lug™ LCC250-12DF-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 250 MCM (kcmil) wire gauge and features a 1/2 stud size for secure mounting. The terminal style includes two stud holes, with a tab thickness of 0.140" (3.56mm) and an outer edge width of 1.170" (29.72mm). Termination is achieved via crimp, utilizing a barrel design. Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp terminal is commonly employed in power distribution, industrial automation, and heavy equipment manufacturing sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
