LCC250-12D-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

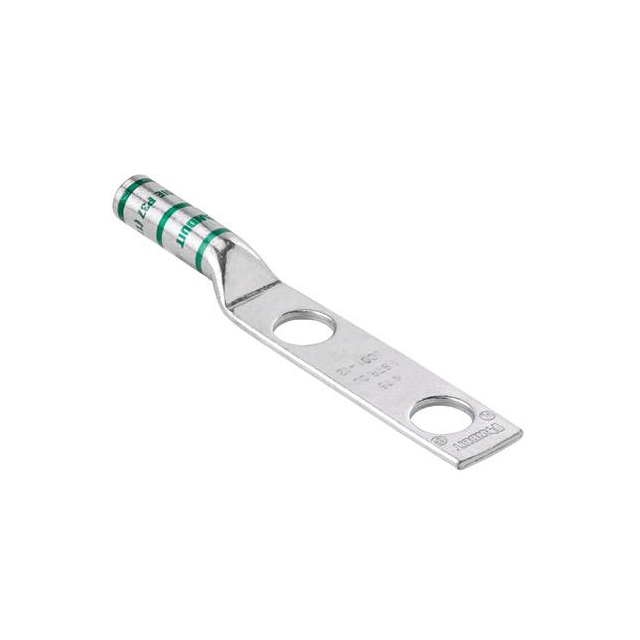

Panduit Corp Pan-Lug™ LCC250-12D-X is a non-insulated, rectangular tongue terminal connector designed for crimp termination. This component features a 250 kcmil wire gauge capacity and a 1/2 stud size, with two stud holes for mounting. Its overall length is 4.320 inches (109.73mm), and it has a width of 1.170 inches (29.72mm) across its outer edges and a tab thickness of 0.140 inches (3.56mm). The mounting type is free hanging (in-line). This terminal connector is commonly employed in power distribution and heavy-duty electrical applications within the industrial and energy sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.320"" (109.73mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
