LCC2-38DWF-Q
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

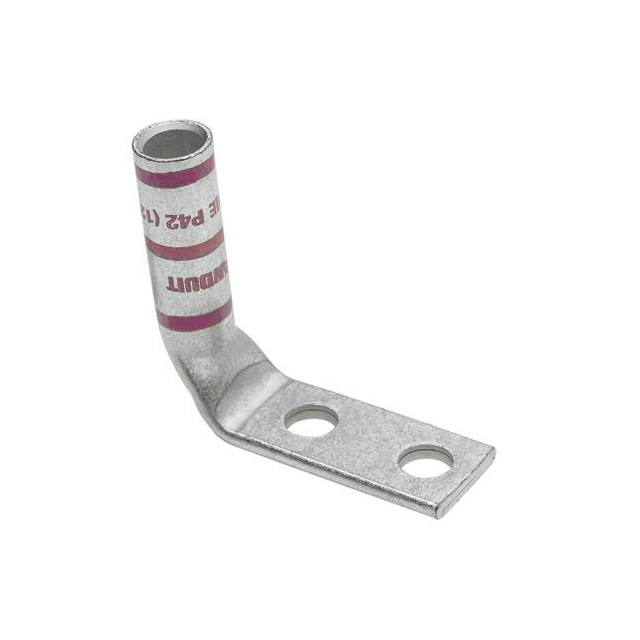

The Panduit Corp Pan-Lug™ LCC2-38DWF-Q is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component is engineered for 2 AWG wire gauge and features a 3/8 stud size for secure mounting. Its terminal style accommodates two stud holes, with a tab thickness of 0.100 inches (2.54mm) and an outer edge width of 0.660 inches (16.76mm). The termination method is crimp to barrel. Commonly employed in power distribution, industrial control systems, and renewable energy applications, this component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.660"" (16.76mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
