LCC2-38CW-Q
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

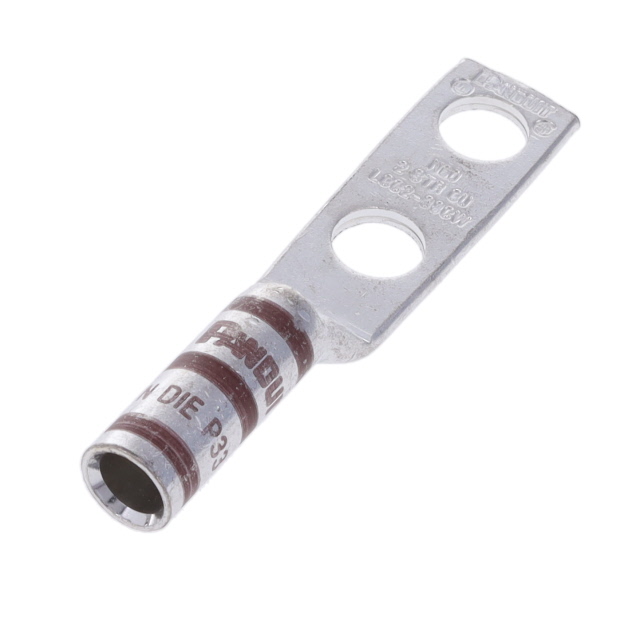

Panduit Corp Pan-Lug™ LCC2-38CW-Q is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 3/8 stud size and accommodates 2 AWG wire gauge, utilizing a Crimp, Barrel termination method. With an overall length of 3.120" (79.25mm) and a width of 0.660" (16.76mm), it offers a substantial tab thickness of 0.100" (2.54mm). The terminal style includes two stud holes, facilitating secure mounting. Commonly employed in industrial automation, power distribution, and heavy-duty equipment manufacturing, this brown colored terminal is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.120"" (79.25mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.660"" (16.76mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
