LCC2-38BWF-Q
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

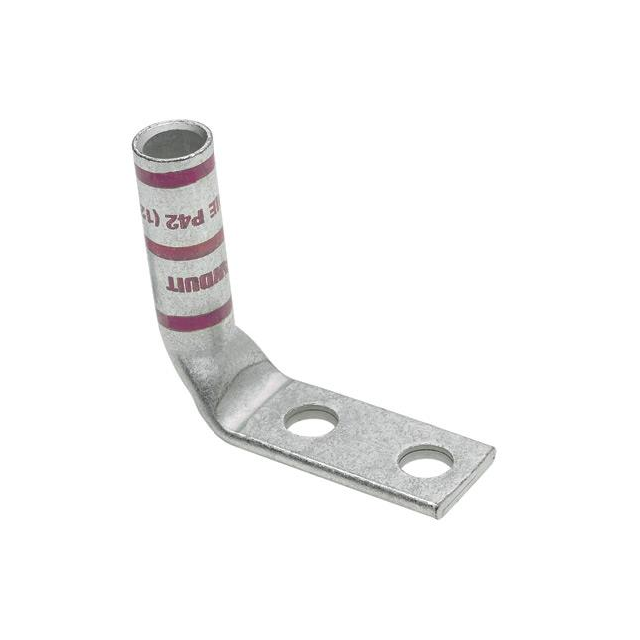

Panduit Corp Pan-Lug™ LCC2-38BWF-Q is a non-insulated, rectangular tongue terminal designed for crimp barrel termination. This component accommodates 2 AWG wire gauge and features a 3/8 stud size with two stud holes. The terminal offers a width of 0.660 inches (16.76mm) and a tab thickness of 0.100 inches (2.54mm). Mounting options include free hanging (in-line) and right angle configurations. This terminal is suitable for applications in power distribution and industrial automation equipment.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.660"" (16.76mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
