LCC2-14BW-Q
CONN TERM RECT TONG 2 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

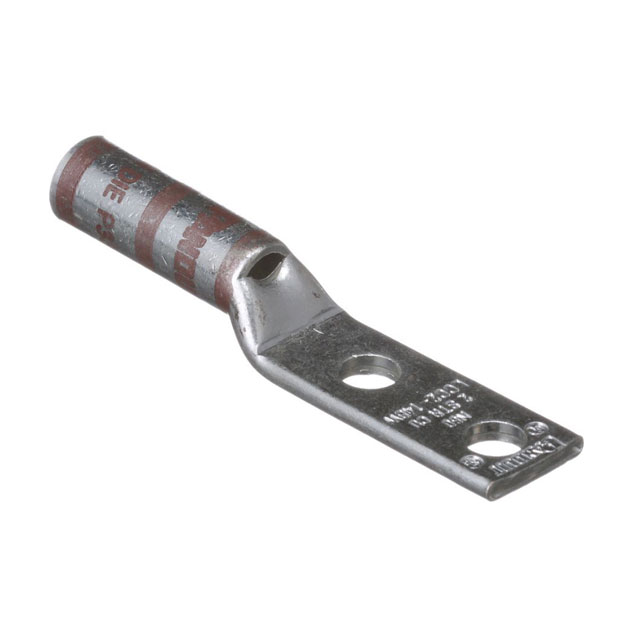

Panduit Corp Pan-Lug™ LCC2-14BW-Q is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component is rated for 2 AWG wire and features a 1/4 inch stud size, facilitating secure termination. The LCC2-14BW-Q offers a crimp barrel termination method for reliable wire attachment. Its overall length is 2.790 inches (70.87mm), with an outer width of 0.600 inches (15.24mm) and a tab thickness of 0.100 inches (2.54mm). The terminal style includes two stud holes for versatile mounting configurations, with a free hanging (in-line) mounting type. This component is commonly utilized in industrial power distribution and heavy equipment applications, supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.790"" (70.87mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
