LCC2-14BH-Q
CONN TERM RECT TONG 2 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

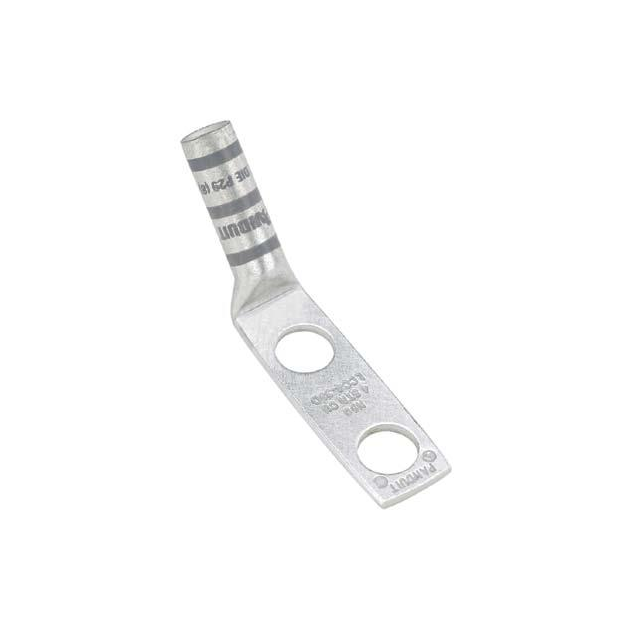

Panduit Corp Pan-Lug™ LCC2-14BH-Q is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component is specified for 2 AWG wire gauge and features a 1/4 Stud size with a tab thickness of 0.100" (2.54mm). The terminal boasts a 0.600" (15.24mm) outer width and a two-stud hole configuration, facilitating secure and reliable termination via crimp barrel methods. Its mounting type is free hanging (in-line) with a 45° angle option. Commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing, the LCC2-14BH-Q is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
