LCC2-10AW-Q
CONN TERM RECT TONG 2 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

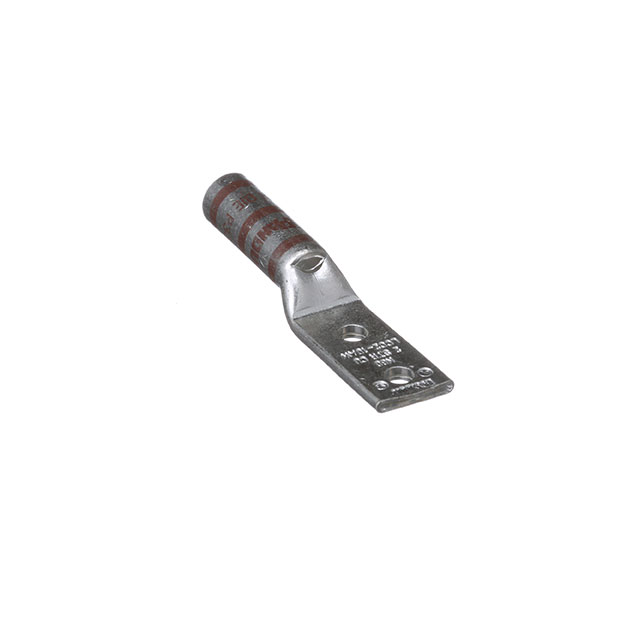

Panduit Corp Pan-Lug™ LCC2-10AW-Q is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates 2 AWG wire gauge and features two stud holes for a #10 stud size, with a tab thickness of 0.100 inches. The terminal style is a rectangular tongue with a barrel termination suitable for crimping. Its overall length is 2.570 inches, and the outer edges measure 0.600 inches in width. The mounting type is free hanging (in-line). This Panduit Corp terminal is typically utilized in industrial power distribution and heavy-duty electrical applications where reliable termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 2.570"" (65.28mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Two Stud Holes |
