LCC2-00-Q
CONN TERM RECT TONG 2 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

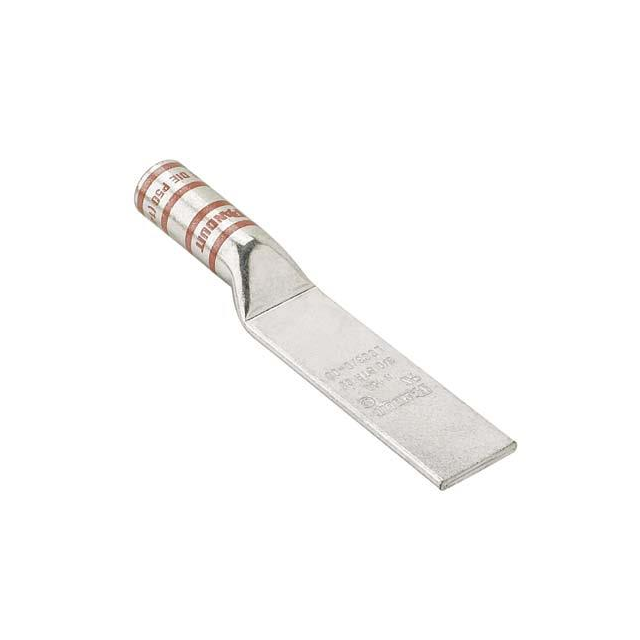

Panduit Corp Pan-Lug™ LCC2-00-Q. This non-insulated, rectangular tongue terminal connector is designed for crimp termination of 2 AWG wire. Featuring a tabular thickness of 0.080 inches (2.03mm) and an overall length of 4.510 inches (114.55mm), this component offers a 0.750-inch (19.05mm) outer edge width. The LCC2-00-Q utilizes a barrel termination method and is suitable for free-hanging, in-line mounting configurations. Its robust construction makes it a reliable choice for demanding applications in power distribution, industrial automation, and heavy equipment manufacturing. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 4.510"" (114.55mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | No Stud Hole |
