LCC2/0-56DWH-X
CONN TERM RECT TONG 2/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

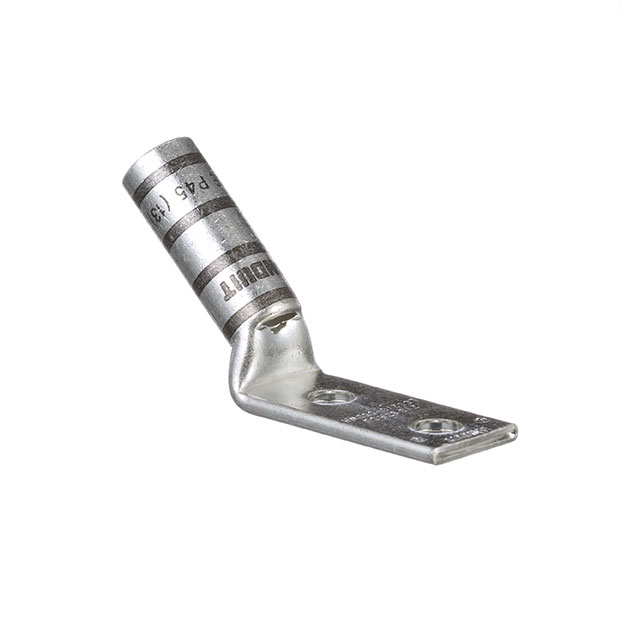

Panduit Corp Pan-Lug™ LCC2-0-56DWH-X is a non-insulated, rectangular tongue terminal designed for 2/0 AWG wire. This component features two stud holes, accommodating a 5/16" stud size and a tab thickness of 0.130" (3.30mm). The outer width measures 0.850" (21.59mm). Termination is achieved via crimp barrel connection. The mounting type is free hanging (in-line) with a 45° angle provision. This terminal is suitable for bulk packaging and is commonly employed in power distribution, industrial control, and renewable energy applications where robust and reliable electrical connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
