LCC2/0-56D-X
CONN TERM RECT TONG 2/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

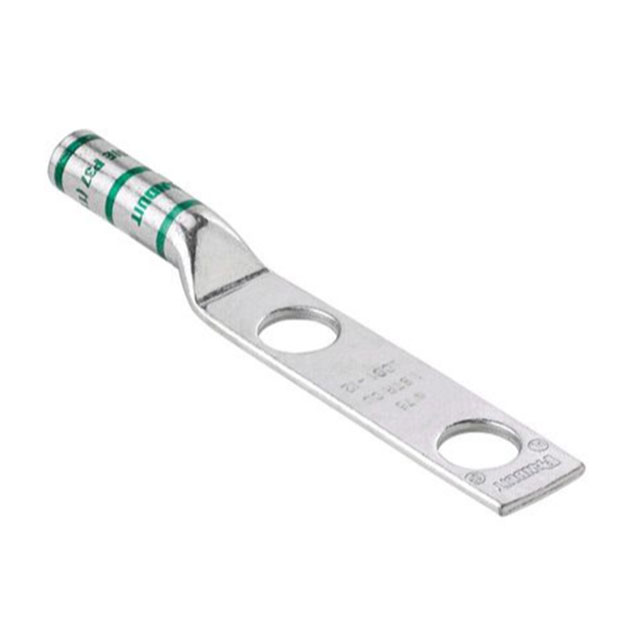

Panduit Corp Pan-Lug™ LCC2-0-56D-X is a non-insulated rectangular tongue terminal connector designed for 2/0 AWG wire. This crimp-style terminal features a barrel termination and a 0.130" (3.30mm) tab thickness. It offers a 5/16 stud size for secure mounting. The overall length is 3.760" (95.50mm) with an outer edge width of 0.850" (21.59mm). This component is suitable for free-hanging (in-line) applications and is provided in bulk packaging. Its robust construction makes it suitable for use in industrial power distribution and heavy equipment manufacturing.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 3.760"" (95.50mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
