LCC2/0-38DWF-X
CONN TERM RECT TONG 2/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

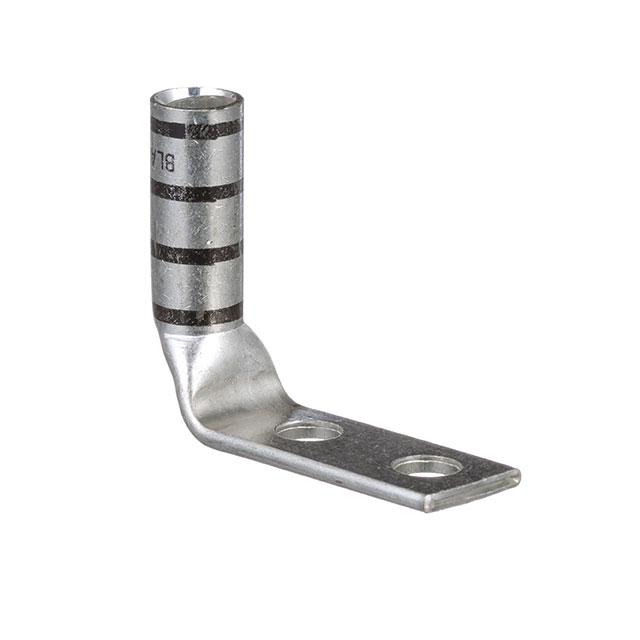

Panduit Corp Pan-Lug™ LCC2-0-38DWF-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component is engineered for crimp termination of 2/0 AWG wire, featuring a 0.38-inch stud size and a 0.130-inch tab thickness. The terminal style includes two stud holes, and the overall width is 0.850 inches. It supports free hanging (in-line) and right-angle mounting configurations. This Panduit Corp component is commonly employed in power distribution, industrial automation, and renewable energy systems requiring reliable, high-current terminations.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
