LCC2/0-14BW-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

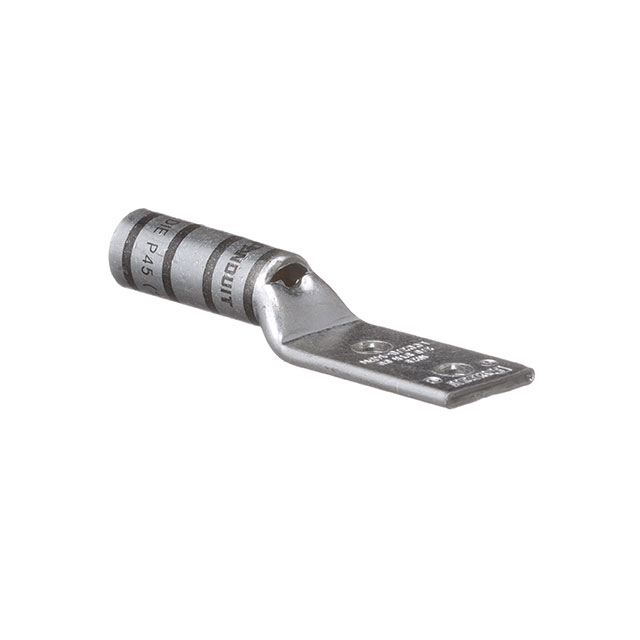

Panduit Corp Pan-Lug™ LCC2-0-14BW-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accepts 2/0 AWG wire gauge and features a 1/4 stud size for secure mounting. The terminal style includes two stud holes, facilitating reliable terminations via crimping. With an overall length of 3.360 inches (85.34mm) and a width of 0.850 inches (21.59mm), it offers substantial contact area. The tab thickness is 0.130 inches (3.30mm). This part is commonly utilized in power distribution, industrial automation, and renewable energy sectors where reliable high-current connections are critical. Supplied in bulk packaging, the LCC2-0-14BW-X is engineered for demanding electrical applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.360"" (85.34mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
