LCC2/0-14AW-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

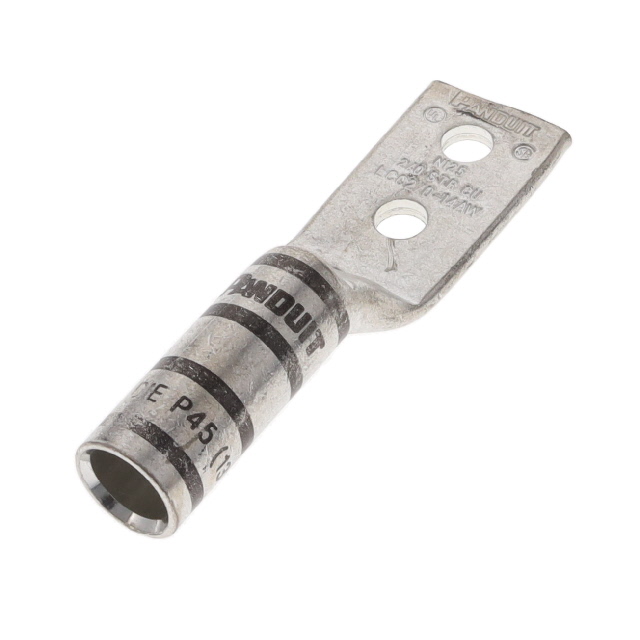

Panduit Corp Pan-Lug™ LCC2-0-14AW-X is a non-insulated, rectangular tongue terminal for 2/0 AWG wire. This component features a 1/4" stud size and a tab thickness of 0.130". The overall length is 3.230" (82.04mm) with an outer width of 0.850" (21.59mm). Designed for crimp barrel termination, it offers a two-stud hole terminal style and a free hanging (in-line) mounting type. This terminal is commonly utilized in power distribution and heavy-duty electrical connections within industrial equipment and renewable energy systems. The LCC2-0-14AW-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.230"" (82.04mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
