LCC1000-38DW-3
CONN TERM RECT TONG 1000MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

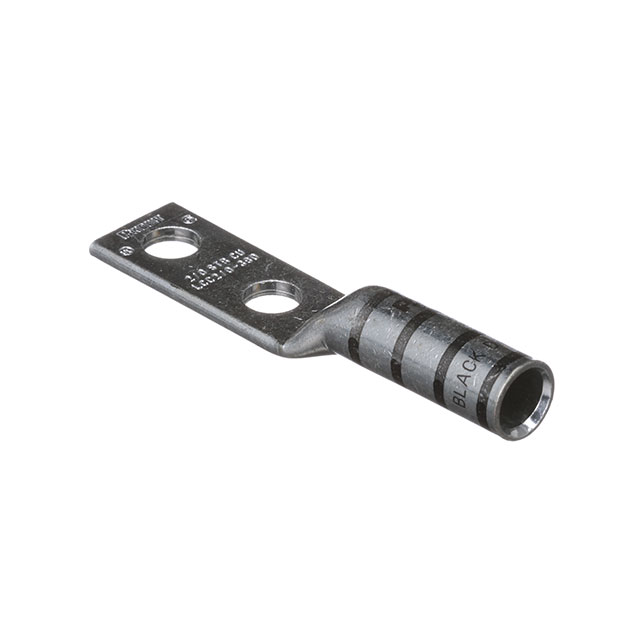

Panduit Corp's Pan-Lug™ LCC1000-38DW-3 is a non-insulated, rectangular tongue terminal connector designed for high-capacity wire termination. This component features a 1000MCM (kcmil) wire gauge capacity and a 3/8 stud size, suitable for #3/8 stud mounting. The terminal style includes two stud holes, facilitating secure connections. With a crimp barrel termination, it ensures robust electrical contact. The overall length is 5.950 inches (151.13mm), and the outer width measures 2.170 inches (55.12mm), with a tab thickness of 0.320 inches (8.13mm). Mounting is designed for free-hanging, in-line applications. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and renewable energy systems requiring reliable, heavy-duty electrical connections. Packaging is supplied in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1000MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 5.950"" (151.13mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Two Stud Holes |
