LCC1000-38D-3
CONN TERM RECT TONG 1000MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

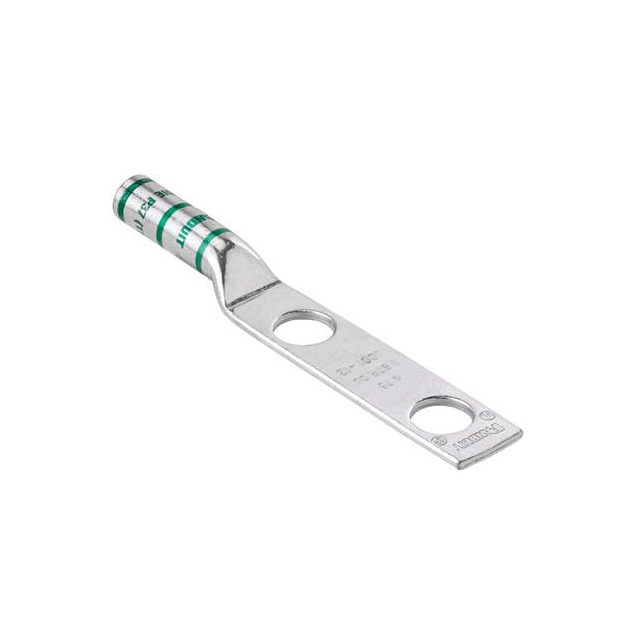

Panduit Corp Pan-Lug™ LCC1000-38D-3 is a non-insulated rectangular tongue terminal connector designed for high-capacity power applications. This component features a two-stud hole configuration with a 3/8 stud size, accommodating wire gauges up to 1000MCM (kcmil). The terminal style is a rectangular tongue, with a barrel termination suitable for crimping. Key dimensions include an overall length of 6.350 inches (161.29mm), an outer edge width of 2.170 inches (55.12mm), and a tab thickness of 0.320 inches (8.13mm). The mounting type is free hanging (in-line). This Panduit Corp component is typically utilized in industrial power distribution, heavy equipment manufacturing, and utility infrastructure sectors where robust and reliable electrical connections are paramount. The LCC1000-38D-3 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1000MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 6.350"" (161.29mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Two Stud Holes |
