LCC1000-00-3
CONN TERM RECT TONG 1000 MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

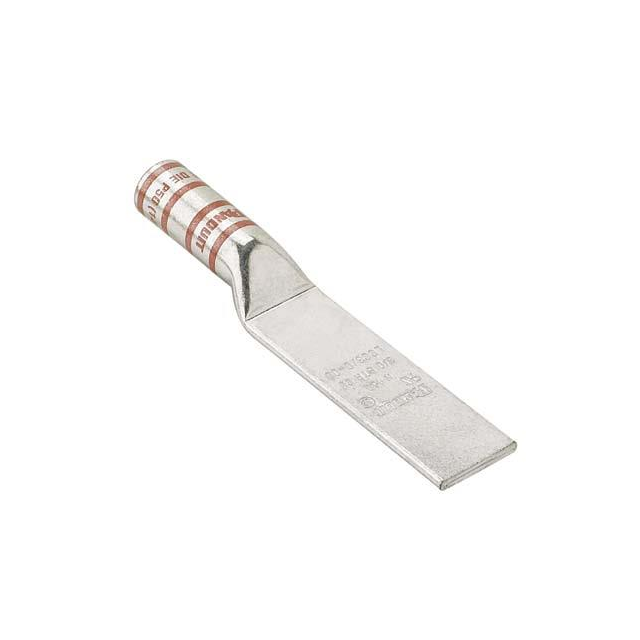

Panduit Corp Pan-Lug™ LCC1000-00-3 is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component supports wire gauges up to 1000MCM (kcmil) and utilizes a crimp barrel termination method. Key dimensions include an overall length of 7.290 inches (185.17mm) and a tab thickness of 0.320 inches (8.13mm). The mounting type is free hanging for in-line connections. This terminal is suitable for use in power distribution, industrial automation, and renewable energy systems where robust and reliable electrical connections are critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1000MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 7.290"" (185.17mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | No Stud Hole |
