LCC10-14BWH-L
CONN TERM RECT TONG 10 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

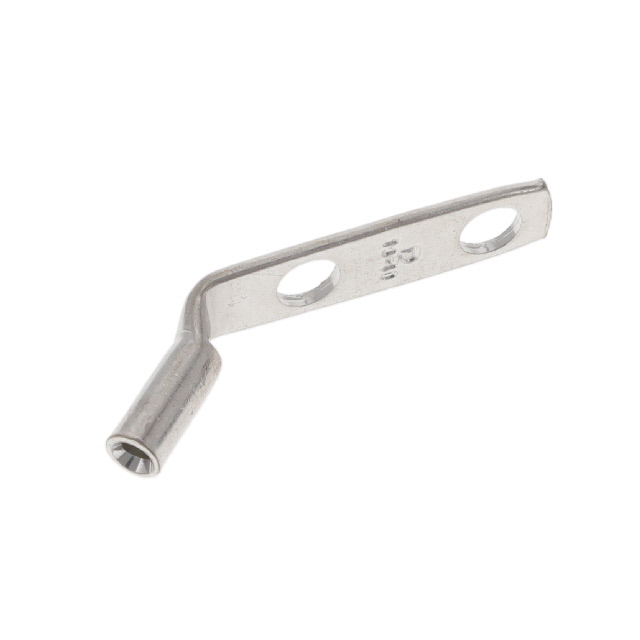

Panduit Corp Pan-Lug™ LCC10-14BWH-L is a non-insulated, rectangular tongue terminal designed for 10 AWG wire. This crimp-style component features a barrel termination and a 1/4 stud size, with an overall width of 0.420 inches (10.67mm) and a tab thickness of 0.050 inches (1.27mm). Mounting is supported in a free-hanging (in-line) configuration or at a 45° angle. The LCC10-14BWH-L is suitable for applications requiring robust electrical connections in industrial automation, power distribution, and telecommunications infrastructure. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.420"" (10.67mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Two Stud Holes |
