LCC10-14BWF-L
CONN TERM RECT TONG 10 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

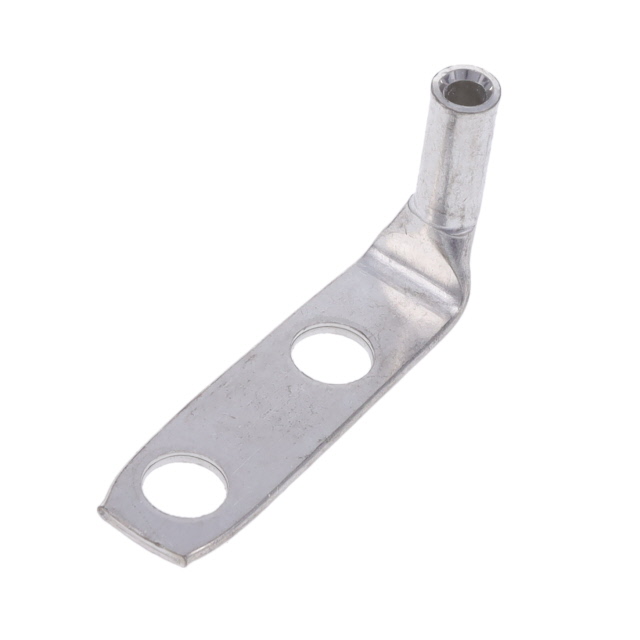

Panduit Corp Pan-Lug™ LCC10-14BWF-L is a non-insulated, rectangular tongue, terminal connector designed for 10 AWG wire. This component features a dual stud configuration with a 1/4 inch stud size and a tab thickness of 0.050 inches. The terminal type is rectangular tongue, with a crimp barrel termination. The overall width is 0.420 inches. Mounting is supported via free hanging (in-line) or right angle configurations. This Panduit Corp component is commonly utilized in power distribution and electrical systems across industrial automation, telecommunications, and renewable energy sectors. Packaging is provided in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.420"" (10.67mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Two Stud Holes |
