LCC1-56CF-E
CONN TERM RECT TONG 1 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

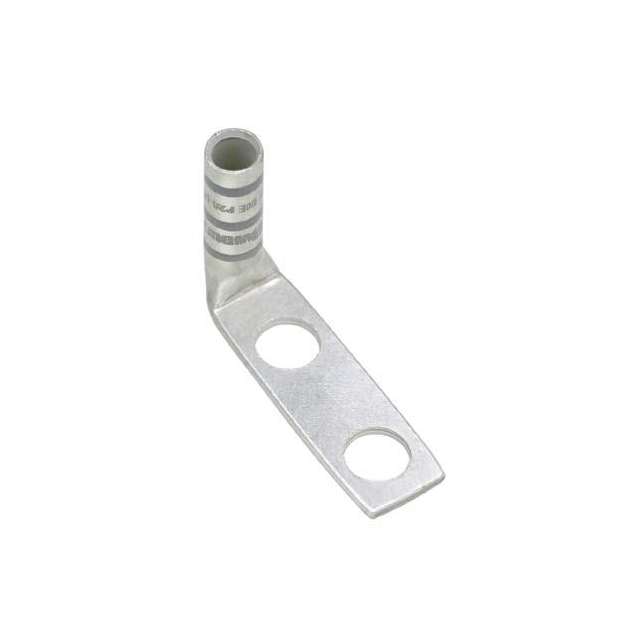

Panduit Corp Pan-Lug™ LCC1-56CF-E is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 1 AWG wire gauge and features a 5/16 stud size with a tab thickness of 0.110 inches (2.79mm). The terminal style incorporates two stud holes, facilitating secure mounting. Termination is achieved via crimp onto a barrel. With an overall width of 0.700 inches (17.78mm), the LCC1-56CF-E is suitable for free-hanging (in-line) or right-angle mounting configurations. This component is commonly utilized in industrial automation, power distribution, and heavy equipment manufacturing. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
