LCC1-38DW-E
CONN TERM RECT TONG 1 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

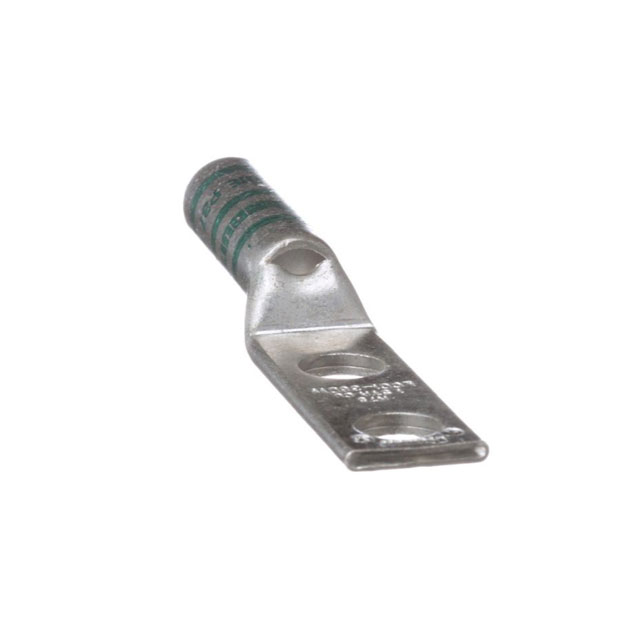

Panduit Corp Pan-Lug™ LCC1-38DW-E is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a two-stud hole terminal style, accommodating a 3/8 stud size with a tab thickness of 0.110 inches. It is engineered for 1 AWG wire gauge and utilizes a crimp, barrel termination method. The connector has an overall length of 3.460 inches and a width of 0.700 inches. Its free hanging (in-line) mounting type offers flexibility in installation. This Panduit Corp terminal is commonly employed in industrial power distribution, automotive systems, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.460"" (87.88mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
