LCC1-38DF-E
CONN TERM RECT TONG 1 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

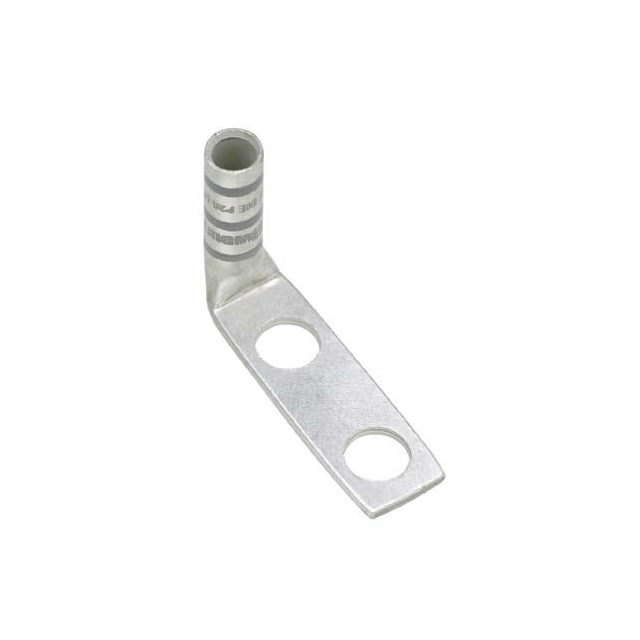

Panduit Corp Pan-Lug™ LCC1-38DF-E is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a Crimp, Barrel termination method and accommodates 1 AWG wire. The terminal provides two stud holes, with a primary stud size of 3/8. Its construction includes a tab thickness of 0.110" (2.79mm) and an outer width of 0.700" (17.78mm). The mounting type is specified as Free Hanging (In-Line) with a Right Angle configuration. This Panduit Corp terminal is suitable for applications in power distribution, electrical infrastructure, and industrial automation. Packaged in Bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
