LCC1-14BWF-E
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

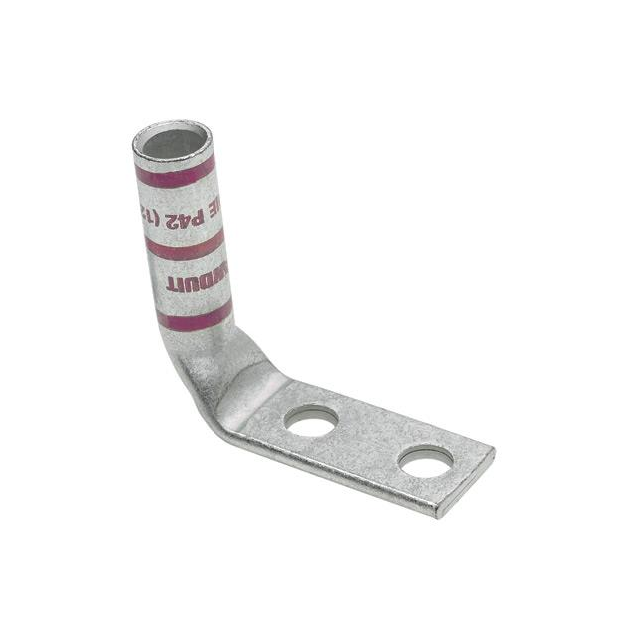

Panduit Corp Pan-Lug™ LCC1-14BWF-E is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. This component features a two-stud hole terminal style with a 1/4 stud size and a tab thickness of 0.110" (2.79mm). Its outer edges measure 0.700" (17.78mm) in width. The LCC1-14BWF-E is suitable for crimp barrel termination and offers both free-hanging (in-line) and right-angle mounting options. It is commonly utilized in power distribution, electrical infrastructure, and industrial automation applications where reliable wire termination is critical. The component is supplied in bulk packaging and is green in color.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
