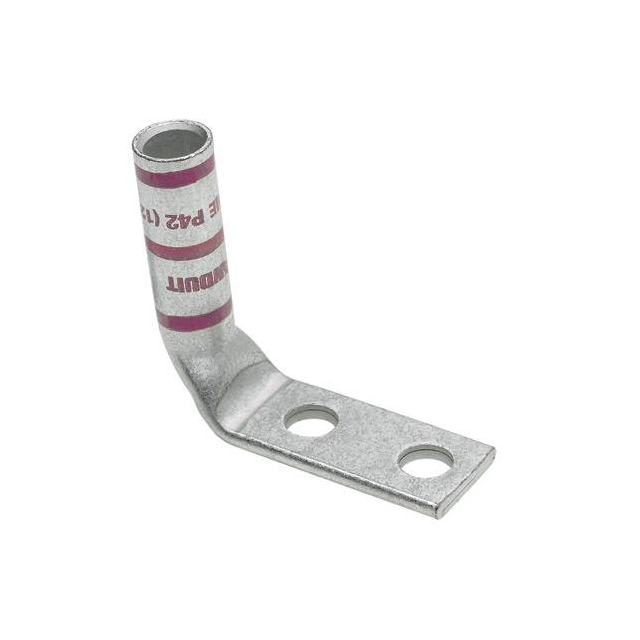

LCC1-14AWF-E
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCC1-14AWF-E is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. Featuring a 0.250" (1/4") stud/tab size and a tab thickness of 0.110" (2.79mm), this component offers a 0.700" (17.78mm) outer edge width. The termination method is crimp, utilizing a barrel. This terminal connector can be mounted free hanging (in-line) or at a right angle. It is suitable for applications requiring reliable electrical connections in industrial automation, power distribution, and electrical infrastructure. This Panduit Corp component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
