LCC1-12WF-E
CONN TERM RECT TONG 1 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

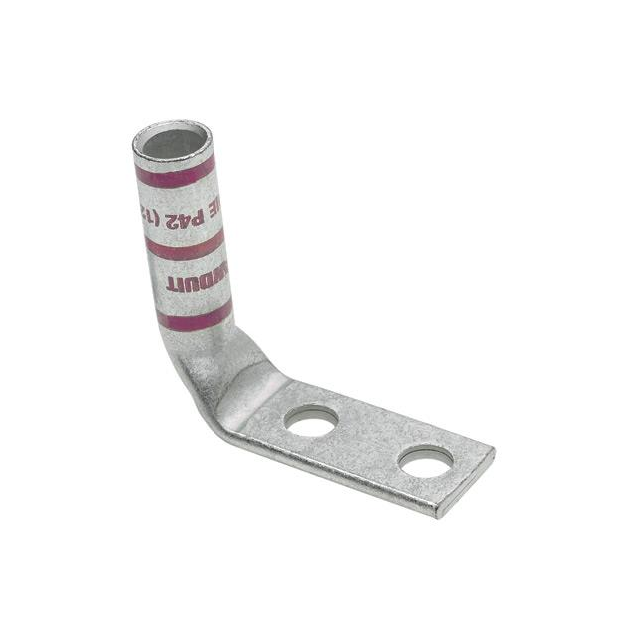

Panduit Corp Pan-Lug™ LCC1-12WF-E is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 1 AWG wire and features a 1/2 inch stud size, with a tab thickness of 0.090 inches (2.29mm). The terminal style includes two stud holes, and it is engineered for crimp termination onto the wire barrel. With an overall width of 0.750 inches (19.05mm), the LCC1-12WF-E offers a secure, in-line mounting solution, suitable for applications requiring right-angle configurations. This Panduit Corp lug is commonly utilized in power distribution, industrial automation, and heavy equipment sectors, where reliable and high-capacity terminations are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
