LCC1-12F-E
CONN TERM RECT TONG 1 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

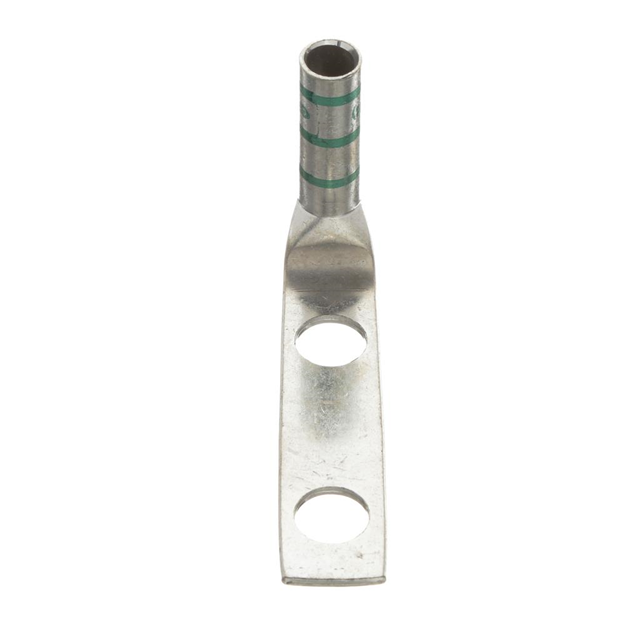

Panduit Corp LCC1-12F-E is a non-insulated, rectangular tongue terminal from the Pan-Lug™ series. This component is designed for a 1 AWG wire gauge and features a 1/2 stud size with two stud holes. The terminal style is a rectangular tongue with a crimp barrel termination. Key dimensions include an outer width of 0.750 inches (19.05mm) and a tab thickness of 0.090 inches (2.29mm). Mounting options include free hanging (in-line) and right angle. This component is commonly utilized in industrial power distribution and electrical infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
