LCC1/0-56D-X
CONN TERM RECT TONG 1/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

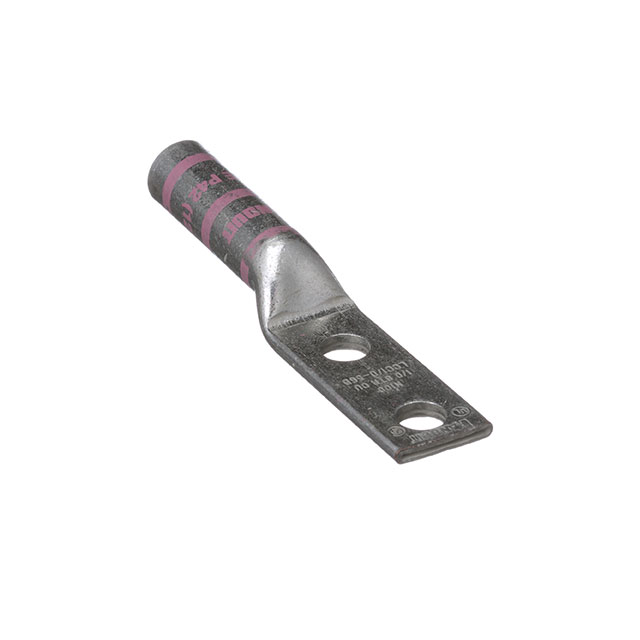

Panduit Corp Pan-Lug™ LCC1-0-56D-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 1/0 AWG wire capacity and accepts a 5/16 stud size. The terminal style includes two stud holes, and termination is achieved via a crimp barrel. With an overall length of 3.610 inches (91.70mm) and a width of 0.760 inches (19.30mm), it offers a substantial contact area. The tab thickness is 0.120 inches (3.05mm). This Panduit Corp terminal is suitable for applications in power distribution, industrial automation, and renewable energy systems where reliable high-current connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 3.610"" (91.70mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
