LCC1/0-38W-X
CONN TERM RECT TONG 1/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

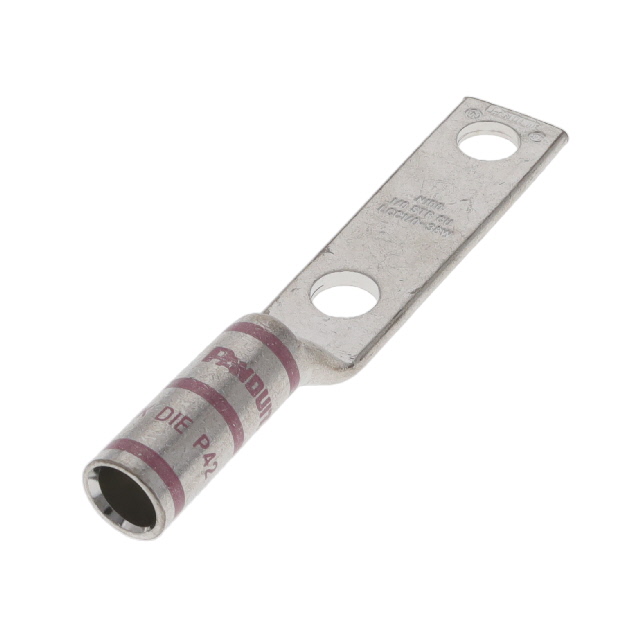

Panduit Corp Pan-Lug™ LCC1-0-38W-X is a non-insulated, rectangular tongue terminal connector engineered for robust electrical connections. This component is designed for crimp termination and features a barrel for secure wire accommodation of 1/0 AWG conductor sizes. The LCC1-0-38W-X boasts a 3/8 stud size and a tab thickness of 0.120 inches, facilitating reliable mounting. Its overall length is 4.320 inches with an outer edge width of 0.760 inches. The terminal style includes two stud holes for enhanced connection security. This Panduit Corp offering is suitable for applications in power distribution, industrial automation, and renewable energy systems where durable and high-capacity terminations are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 4.320"" (109.73mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
