LCC1/0-38DWF-X
CONN TERM RECT TONG 1/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

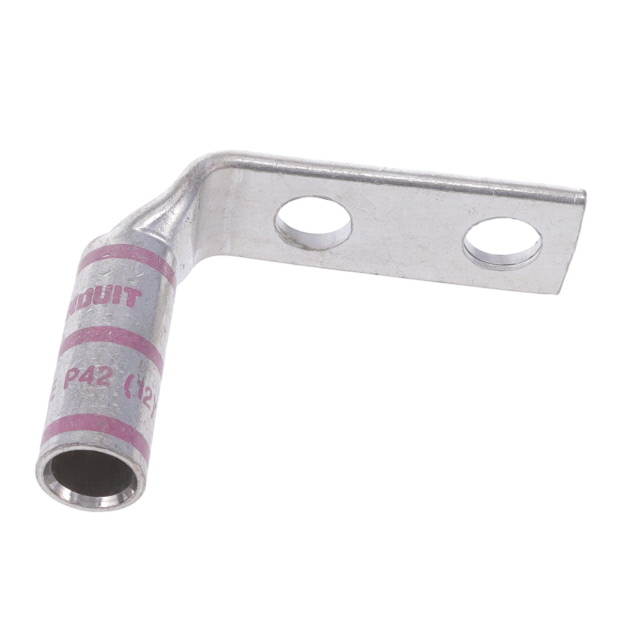

This Panduit Corp Pan-Lug™ LCC1-0-38DWF-X is a non-insulated, rectangular tongue terminal connector designed for crimp termination. It features a 1/0 AWG wire gauge capacity and a 3/8 stud size, with a tab thickness of 0.120 inches (3.05mm). The terminal style includes two stud holes, and the overall width is 0.760 inches (19.30mm). This component is suitable for applications requiring robust and reliable electrical connections, commonly found in power distribution, industrial automation, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
