LCC1/0-14DW-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

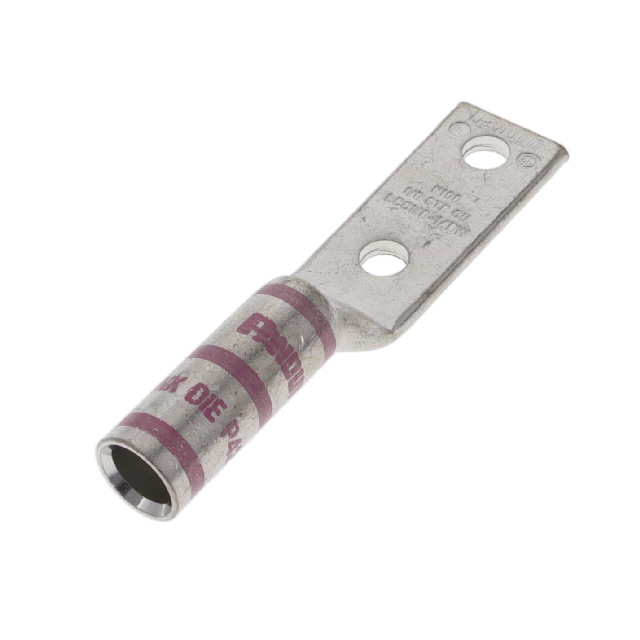

Panduit Corp Pan-Lug™ LCC1-0-14DW-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 1/0 AWG wire gauge and features a 1/4 stud size for secure mounting. Its construction includes two stud holes, offering versatile termination options. The terminal style is a rectangular tongue, and the termination method is crimp to the barrel. With an overall length of 3.440 inches (87.38mm) and a width of 0.760 inches (19.30mm), it provides substantial contact area. The tab thickness is 0.120 inches (3.05mm). This Panduit Corp Pan-Lug™ terminal is suitable for in-line, free-hanging applications and is commonly utilized in power distribution, industrial automation, and renewable energy systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.440"" (87.38mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
