LCC1/0-14B-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

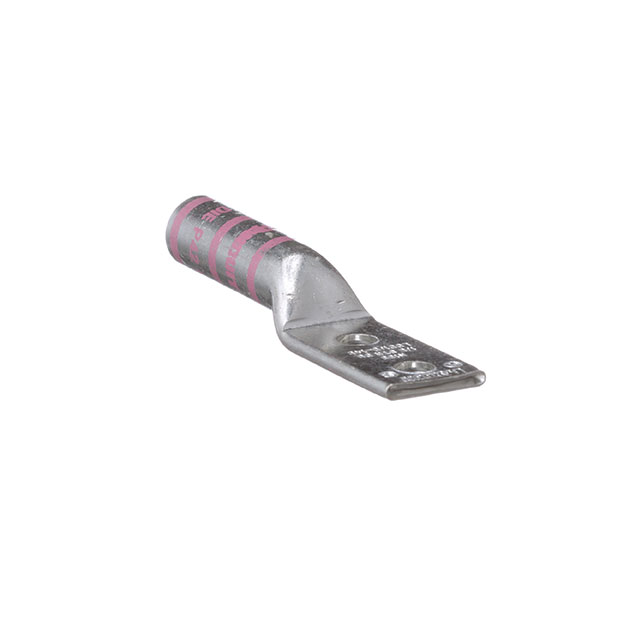

Panduit Corp Pan-Lug™ LCC1-0-14B-X is a non-insulated, rectangular tongue terminal connector designed for 1/0 AWG wire. This terminal features a two-stud configuration with a 1/4" stud size and a tab thickness of 0.120". The overall length is 3.310" with an outer edge width of 0.760". Termination is achieved via crimp to the barrel. Commonly utilized in power distribution, industrial automation, and renewable energy applications, this component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.310"" (84.07mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
