LCC1/0-14AWF-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

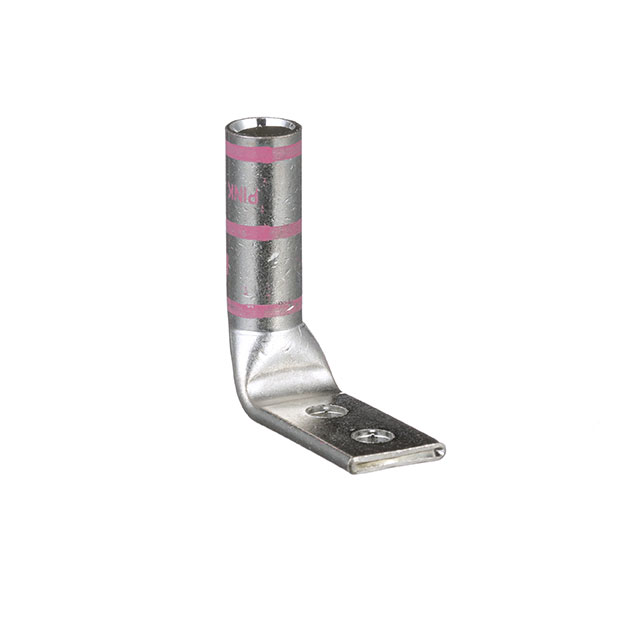

Panduit Corp Pan-Lug™ LCC1-0-14AWF-X is a non-insulated rectangular tongue terminal designed for 1/0 AWG wire. This component features a free hanging (in-line) or right angle mounting type and is terminated via crimp to a barrel. The terminal style includes two stud holes, with a stud/tab size of 1/4 inch and a tab thickness of 0.120 inches (3.05mm). The outer edges measure 0.760 inches (19.30mm) in width. This Panduit Corp terminal is commonly utilized in power distribution and industrial control applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
