LCC1/0-14AW-X
CONN TERM RECT LUG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

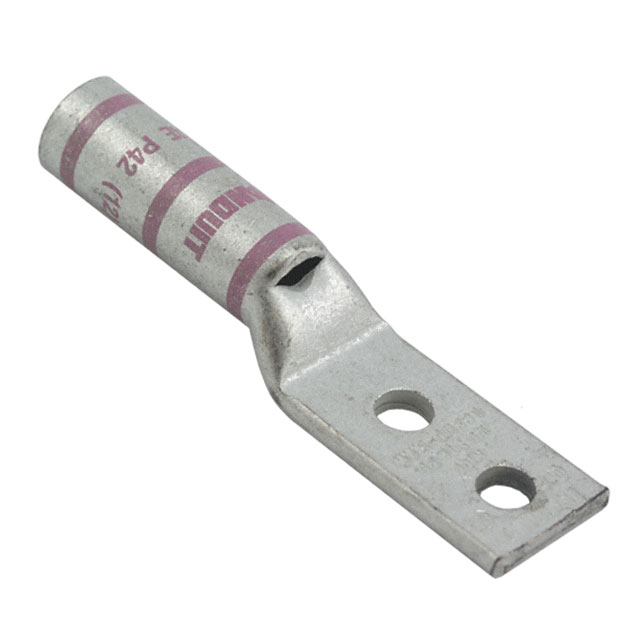

Panduit Corp Pan-Lug™ LCC1-0-14AW-X is a non-insulated, rectangular lug terminal designed for grounding applications. This crimp-style terminal features a 1/0 AWG wire gauge capacity and a 1/4 stud size, with a tab thickness of 0.120 inches. The overall length is 3.071 inches, and the outer width is 0.760 inches. Its two-stud hole terminal style allows for versatile mounting options, including free hanging (in-line). This component is commonly utilized in power distribution, industrial automation, and electrical infrastructure sectors. Packaged in boxes, the LCC1-0-14AW-X offers robust termination for demanding electrical connections.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.071"" (78.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
