LCC1/0-12F-X
CONN TERM RECT TONG 1/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

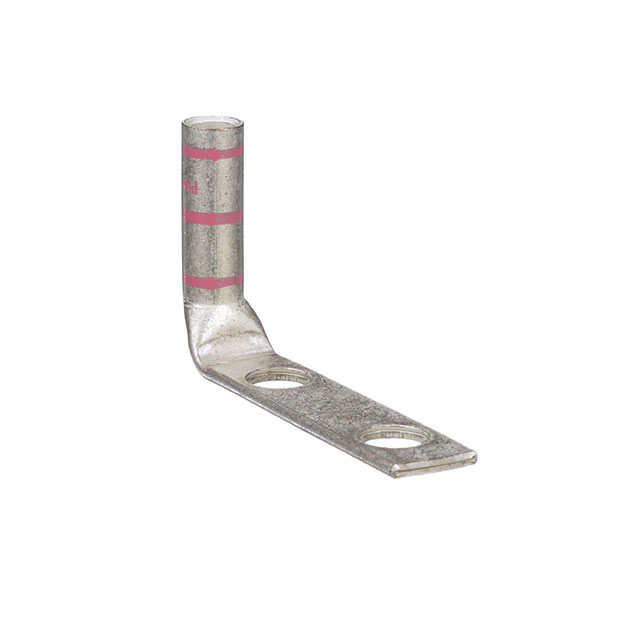

Panduit Corp Pan-Lug™ LCC1-0-12F-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component, specified for 1/0 AWG wire, features a 0.500" (12.7mm) stud size and a 0.120" (3.05mm) tab thickness, accommodating a 0.800" (20.32mm) outer edge width. The terminal style incorporates two stud holes, facilitating secure mounting. Termination is achieved via crimp, with a barrel design for reliable wire termination. Mounting options include free hanging (in-line) and right-angle configurations. Commonly utilized in power distribution, industrial automation, and renewable energy applications, this Panduit Corp Pan-Lug™ connector ensures dependable performance in demanding environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
