LCBX8-38-L
CONN TERM RECT TONG 8 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

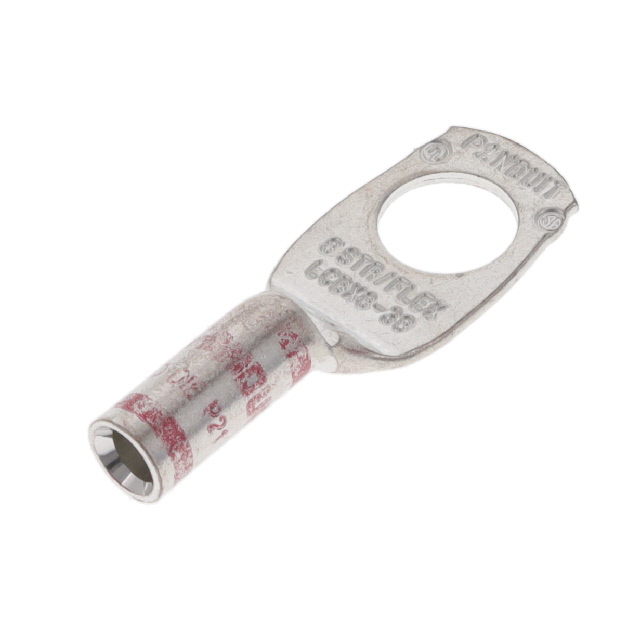

Panduit Corp Pan-Lug™ LCBX8-38-L is a non-insulated, rectangular tongue, single stud hole terminal connector designed for 8 AWG wire. This component features a 3/8 inch stud size and a tab thickness of 0.050 inches. Its overall length is 1.700 inches, with an outer edge width of 0.600 inches. The LCBX8-38-L utilizes a barrel termination with a crimp method. This terminal connector is commonly employed in industrial power distribution, electrical panel building, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.700"" (43.18mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Single Stud Hole |
