LCBX500-38-6
CONN TERM RECT TONG 500 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

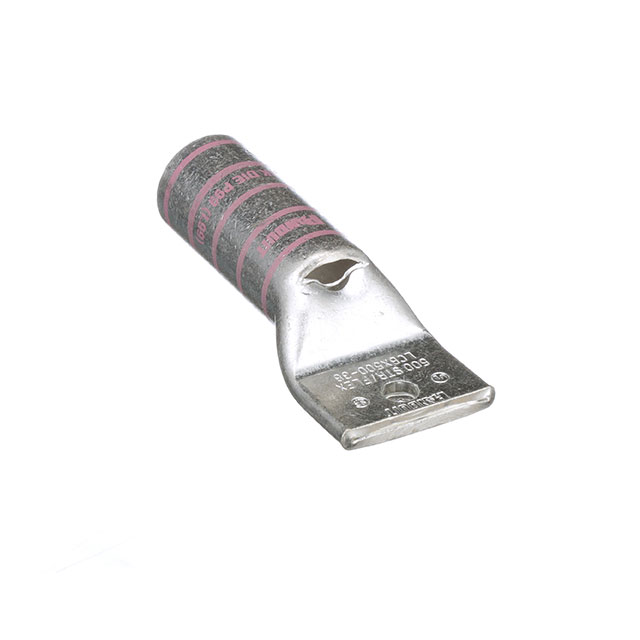

Panduit Corp Pan-Lug™ LCBX500-38-6 is a non-insulated, rectangular tongue terminal designed for 500 MCM (kcmil) conductor sizes. This terminal features a single 3/8 Stud mounting hole with a tab thickness of 0.260 inches. The overall length is 4.840 inches, and the outer width measures 1.890 inches. Termination is achieved via a crimp barrel. This component is suitable for high-power electrical connections and is commonly employed in industrial power distribution, renewable energy systems, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 4.840"" (122.94mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
