LCBX500-12H-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

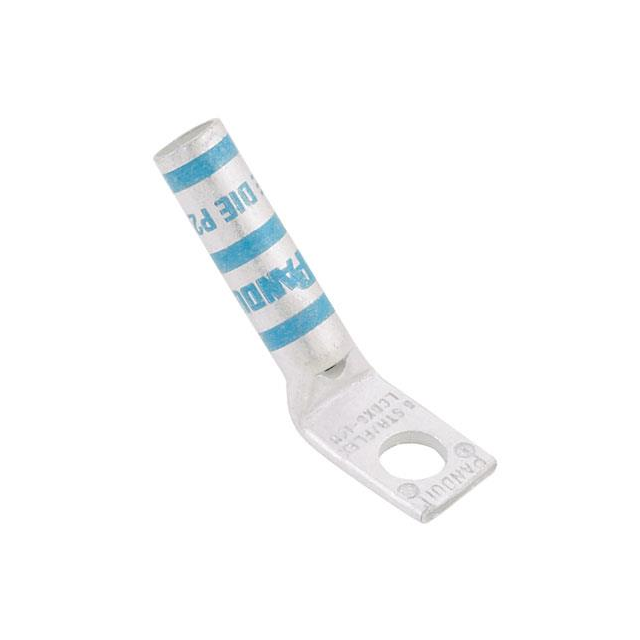

Panduit Corp Pan-Lug™ LCBX500-12H-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity power distribution. This component features a single 1/2 stud hole and is engineered for crimp termination of 500MCM (kcmil) wire. The terminal boasts a substantial width of 1.890 inches (48.01mm) with a tab thickness of 0.260 inches (6.60mm), ensuring robust electrical contact and mechanical integrity. Its mounting options include free hanging (in-line) and a 45° angle configuration, offering flexibility in complex wiring assemblies. This Panduit Corp Pan-Lug™ product is suitable for demanding applications within the power generation, industrial automation, and heavy equipment sectors, where reliable and high-amperage connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
