LCBX500-12F-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

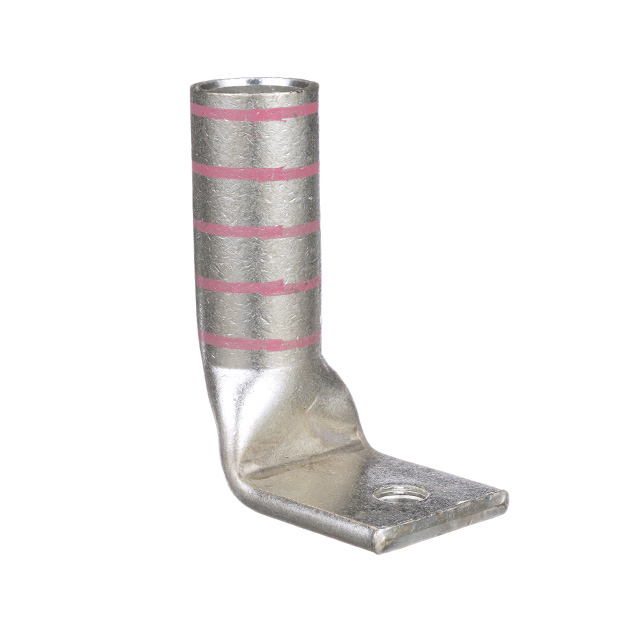

Panduit Corp Pan-Lug™ LCBX500-12F-6 is a non-insulated, rectangular tongue terminal connector designed for 500 MCM (kcmil) wire. This component features a single stud hole with a 1/2" stud size and a tab thickness of 0.260" (6.60mm). The overall width is 1.890" (48.01mm). Termination is achieved via crimp to the barrel. Mounting options include free hanging (in-line) and right angle configurations. This terminal is suitable for applications requiring robust electrical connections in demanding environments, commonly found in power distribution and industrial automation systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
