LCBX4-38-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

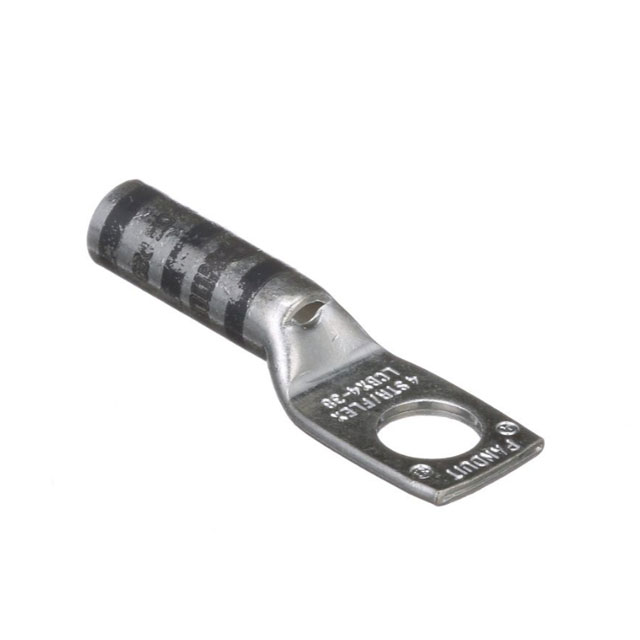

Panduit Corp Pan-Lug™ LCBX4-38-L is a non-insulated, single stud hole rectangular tongue terminal designed for robust electrical connections. This component is manufactured for 4 AWG wire gauge, utilizing a barrel termination method, compatible with crimp applications. It features a 3/8 stud size and a tab thickness of 0.070 inches. The overall length is 2.090 inches, with an outer edge width of 0.620 inches. The mounting type is free hanging, suitable for in-line configurations. This Panduit Corp Pan-Lug™ terminal is commonly employed in power distribution and industrial control systems. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.090"" (53.09mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Single Stud Hole |
